a. Driving system adopts planetary gear, the gimbals transmission shaft insures circumgyrate at the same speed;
b. Mixing system choose the spiral mixing system;
c. TScale board and mixing blades adopts high-rigidity and high tenacity wearable case alloy steel, to prolong the working life;
d. Aggregate lifting appliance adopts frequency control, thus providing smooth and reliable operation;
e. Lubrication system adopts advanced centralized oil lubricating system, convenient for oil supplying;
f. Lubrication system is equipped with overvoltage warning and low oil level warning, safe and reliable;
g. PC+PLC control system ensures the high reliability;
h. With its virtue of precise computation, it can meet the requirement of every high performance concrete;
i. Human-based intelligent control facilitates the operation greatly;
Structural members are durable, and most electric elements adopt world famous brands.
a. The Productivity is 90m3/h;
b. Suitable for large and medium size projects, dam, road and bridge;

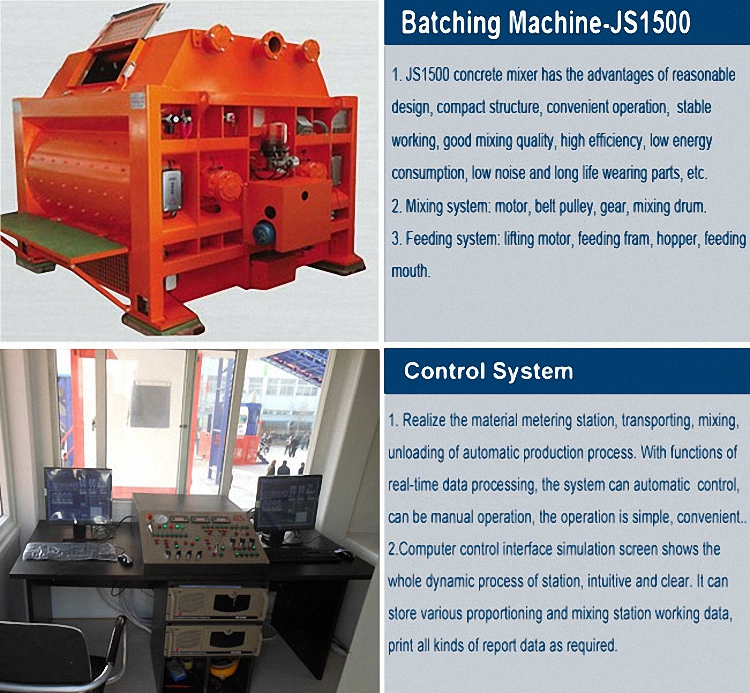

c. JS1500 twin shaft compulsory concrete mixer with high mixing performance;
d. Low noise, low energy consumption;
e. Free training service and spare parts.
| Model | HZS90 | |
|---|---|---|
| Specification | Unit | Value |
| Productivity | m3/h | 90 |
| Capacity of Mixer | m3 | 1.5 |
| Mixer Power | kw | 44 |
| Discharge Height | m | 3.8(for customers choice) |
| Aggregate Bin | Quantity | 4 |
| Aggregate Bin Capacity | m3 | 2.4 |
| Max. Weighing Value of aggregate | kg | 6000 |
| Max. Weighing Value of cement | kg | 1000 |
| Max. Weighing Value of water | kg | 500 |
| Max. Weighing Value of additive | kg | 50 |
| Aggregate Measuring Accuracy | % | 2 |
| Water Measuring Accuracy | % | 1 |
| Cement Measuring Accuracy | % | 1 |
| Additive Measuring Accuracy | % | 1 |
| Cement Silo | _ | Optional |
| Cement Screw Conveyor | _ | Optional |
| Cement Silo Capicity | _ | Optional |
| Control Mode | _ | Auto/Semi control |
