a. HZS60 Concrete Batching Plant has been widely used in the domestic and abroad, as well as earning a perfect reputation in the construction field;
b. HZS series of Concrete Batching Plant, also named concrete mixing plant,which is developed by our company on the basis of adopting the world's sophisticated technologies;
c. This batching plant has been widely used in the domestic and aboard, as well as earning a perfect reputation in the construction field. We have dedicated in manufacturing concrete batch plant for many years.

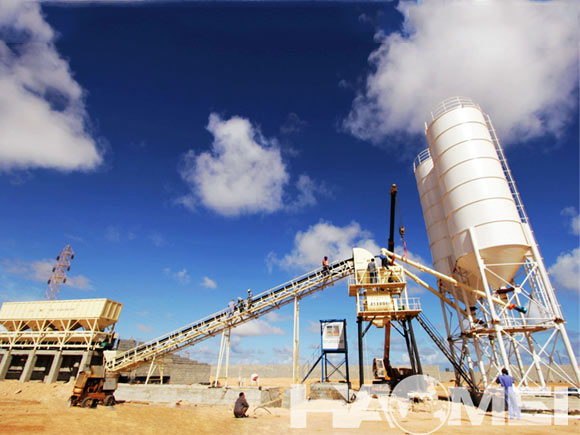

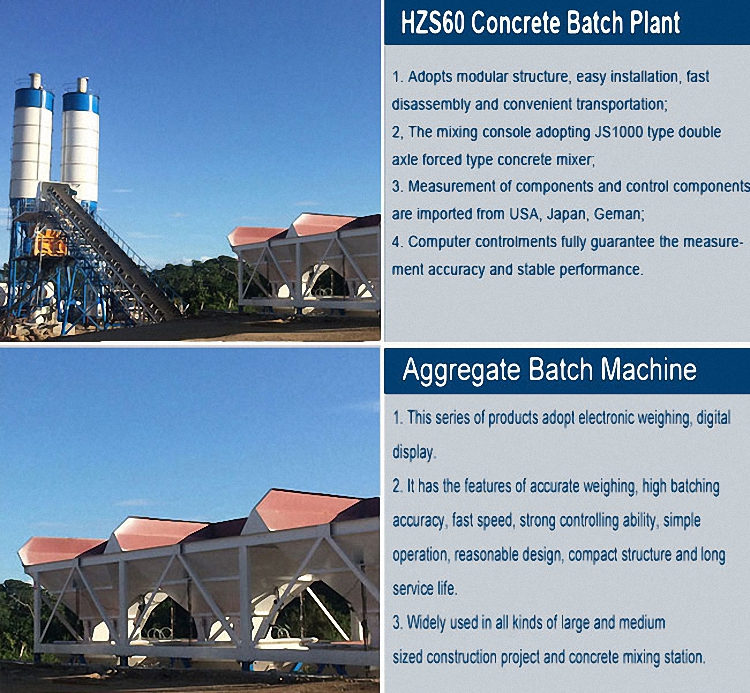

1) HZS60 Concrete Batching Plant
a. Adopts modular structure, easy to install and assembly and convenient to transport;

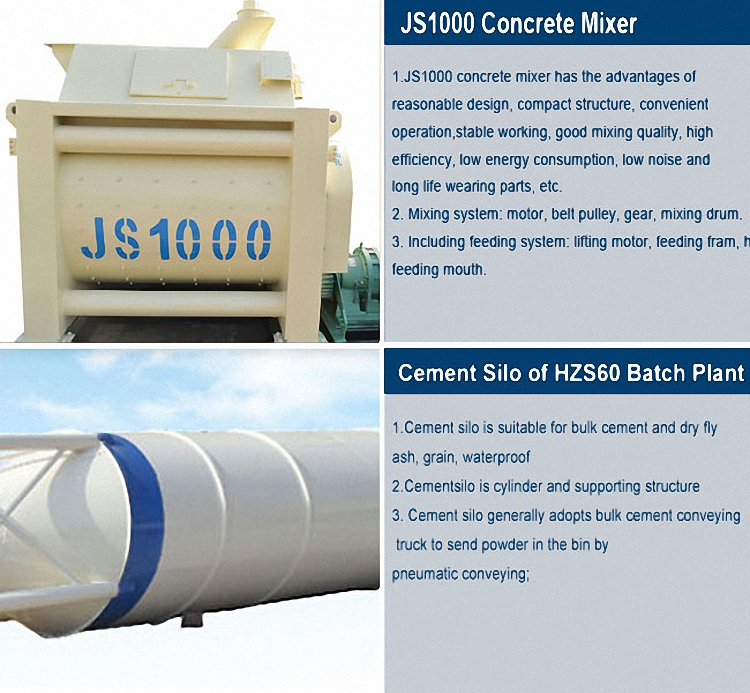

b. The mixing console adopts JS1000 twin shaft compulsory concrete mixer;
c. Measurement of components and control components are importing from USA, Japan, Germany;
d. Computer control system can keep the accuracy and stable measurement performance.
2) Cement Silo of HZS60 Concrete Batching Plant
a. Cement silo is suitable for bulk cement and dry fly ash, grain and waterproof;
b. Cement silo is cylinder and supporting structure;
c. Cement silo generally adopts bulk cement conveying concrete truck to delivery the powder into the bin by pneumatic conveying.
| Model | HZS60 | |
|---|---|---|
| Specification | Unit | Value |
| Productivity | m3/h | 60 |
| Capacity of Mixer | m3 | 1 |
| Mixer Power | kw | 37 |
| Discharge Height | m | 3.8(for customers choice) |
| Aggregate Bin | Quantity | 3 |
| Aggregate Bin Capacity | m3 | 1.6 |
| Max. Weighing Value of aggregate | kg | 3000 |
| Max. Weighing Value of cement | kg | 600 |
| Max. Weighing Value of water | kg | 400 |
| Max. Weighing Value of additive | kg | 50 |
| Aggregate Measuring Accuracy | % | 2 |
| Water Measuring Accuracy | % | 1 |
| Cement Measuring Accuracy | % | 1 |
| Additive Measuring Accuracy | % | 1 |
| Cement Silo | _ | Optional |
| Cement Screw Conveyor | _ | Optional |
| Cement Silo Capicity | _ | Optional |
| Control Mode | _ | Auto/Semi control |
