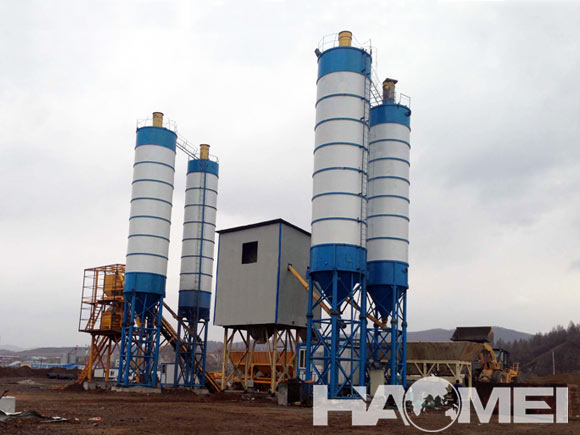

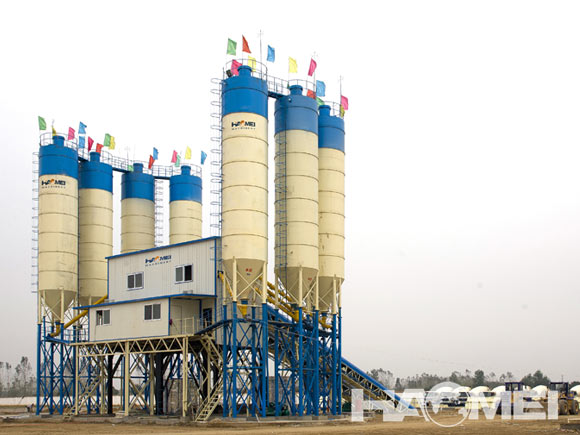

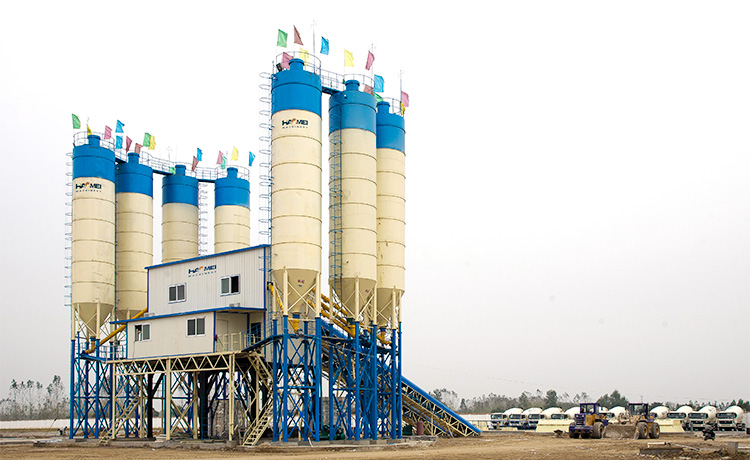

a. HZS150 concrete batching plant is composed of batching, mixing, electrical control and other parts of the full automatic concrete mixing equipment. It is suitable for medium scale construction, precast factory and commercial concrete production plant;
b. The overall appearance, convenient installation and disassembly, each layer of the packaging side can be opened, which is convenient for maintenance and replacement parts;
c. All materials scale adopts independent measurement, a scale of a table, improves the measurement precision of aggregate lifting belt;
d. Machine adopts hanging type speed reducer, lateral stable operation, strong power and easy maintenance;
e. All the powder in the transportation, metering and delivery process is in a closed state, completely eliminate the dust emission of the parts are made of reliable performance and stable transmission of the transmission mechanism, and will effectively reduce the noise;
f. Mixer and belt machine all adopt environmental protection packaging thus, further reduce dust and noise pollution.
a. Modular design structure, which is easy to install and disassemble;

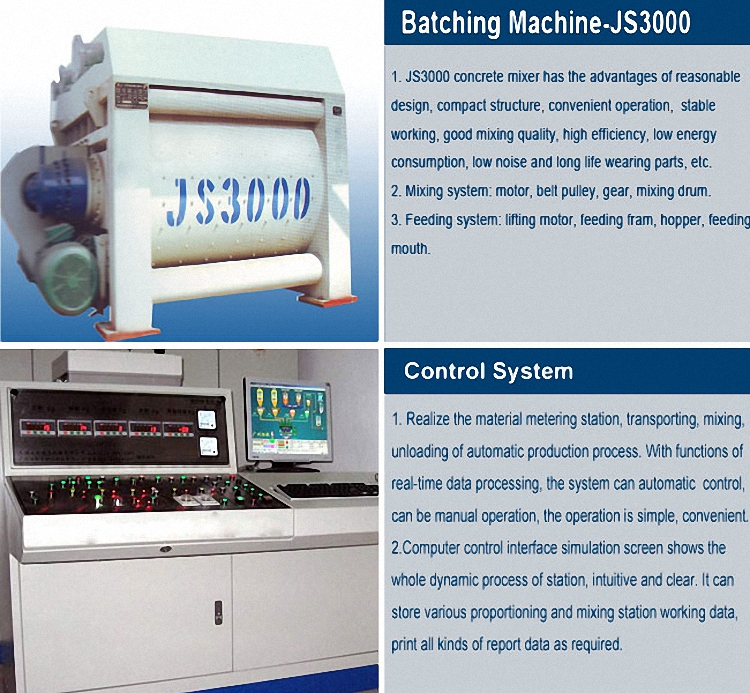

b. With JS3000 twin shaft compulsory concrete mixer, which has the high productivity and good mixing performance;
c. Suitable large size construction projects, eg, bridge, dam, road, school,etc.
| Model | HZS150 | |
|---|---|---|
| Specification | Unit | Value |
| Productivity | m3/h | 150 |
| Capacity of Mixer | m3 | 3 |
| Mixer Power | kw | 110 |
| Discharge Height | m | 3.8(for customers choice) |
| Aggregate Bin | Quantity | 4 |
| Aggregate Bin Capacity | m3 | 4.8 |
| Max. Weighing Value of aggregate | kg | 2*4000 |
| Max. Weighing Value of cement | kg | 1800 |
| Max. Weighing Value of water | kg | 800 |
| Max. Weighing Value of additive | kg | 50 |
| Aggregate Measuring Accuracy | % | 2 |
| Water Measuring Accuracy | % | 1 |
| Cement Measuring Accuracy | % | 1 |
| Additive Measuring Accuracy | % | 1 |
| Cement Silo | _ | Optional |
| Cement Screw Conveyor | _ | Optional |
| Cement Silo Capicity | _ | Optional |
| Control Mode | _ | Auto/Semi control |
